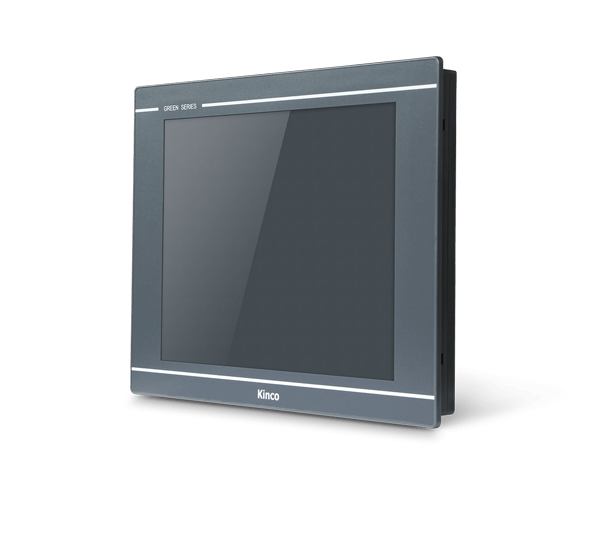

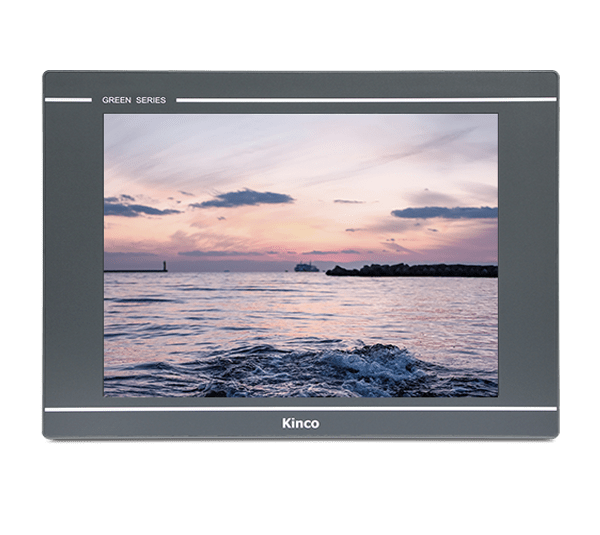

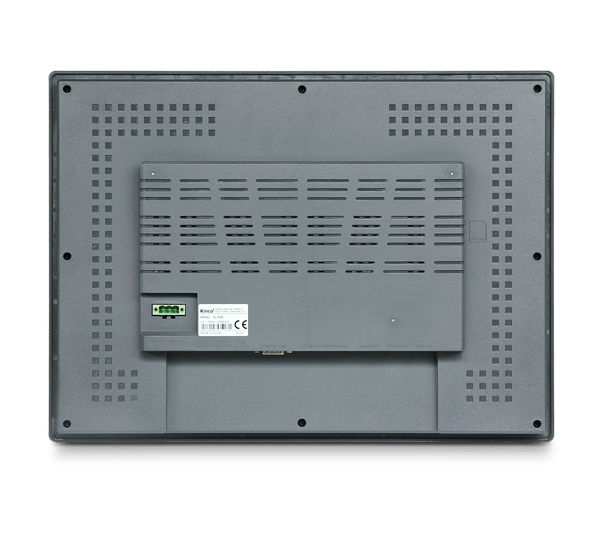

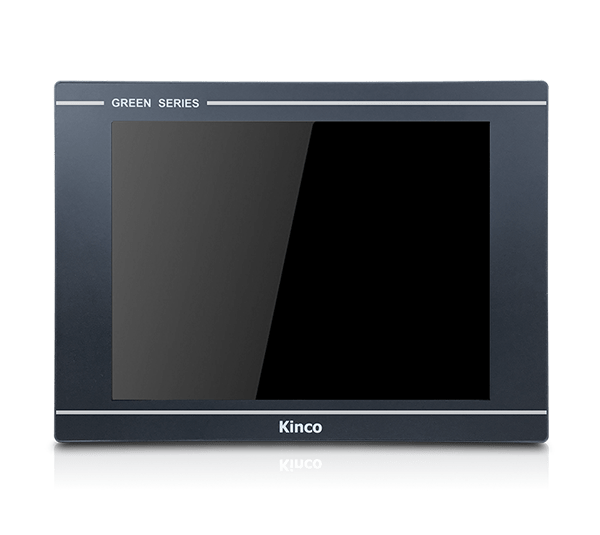

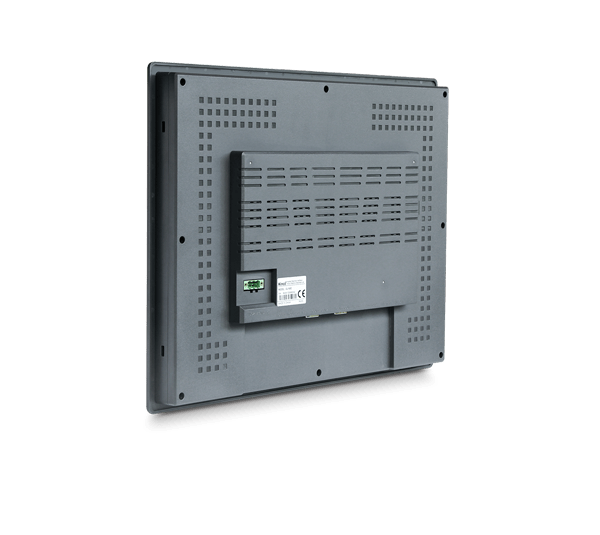

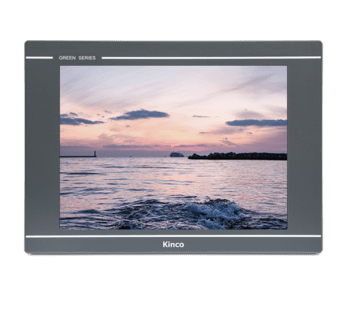

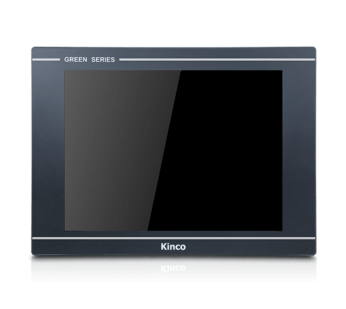

KINCO GL150E HMI

Kinco GL150E is a 15-inch industrial HMI designed for visualization and control of technological processes. It belongs to the GREEN Series and is suitable for control cabinets, dosing systems, bagging machines, conveying lines, mixers, and other industrial automation applications. The panel provides clear display of mimic diagrams, process values, alarms, trends, and service screens.

Main advantages of the GL150E include a large 15″ TFT display with 1024×768 resolution, Ethernet communication, two serial COM ports, support for Kinco DTools software, and industrial design with IP65 front protection. The unit can be used as an operator interface for PLCs, weighing controllers, inverters, and other automation devices.

Application: operator panels are used in industrial automation systems where clear process visualization, equipment control, and parameter monitoring are required. They are suitable for concrete batching plants, dosing systems, packaging machines, conveyor lines, pumping stations, ventilation systems, food-processing equipment, mixers, filling lines, and many other industrial applications. Their main role is to provide operators with a clear and practical interface for machine or process control. KINCO HMI products are designed for industrial use and communication with automation equipment through standard communication interfaces.

These panels are installed as the operator interface in a control cabinet or control desk. The screen can display a process mimic diagram, weight values, equipment status, alarm messages, recipes, start/stop buttons, and process settings.
GL150E is especially suitable where a larger screen is needed for detailed visualization, such as concrete plants, multi-component dosing systems, and larger production lines.

Technical specifications of GL150E:

• Device type: industrial HMI
• Series: Kinco GREEN Series
• Display: 15″ TFT
• Resolution: 1024 × 768
• Colors: 65,536
• Brightness: 250 cd/m²
• Contrast ratio: 800:1
• Backlight: LED
• CPU: 32-bit RISC, 800 MHz
• Memory: 128 MB Flash + 128 MB DDR3

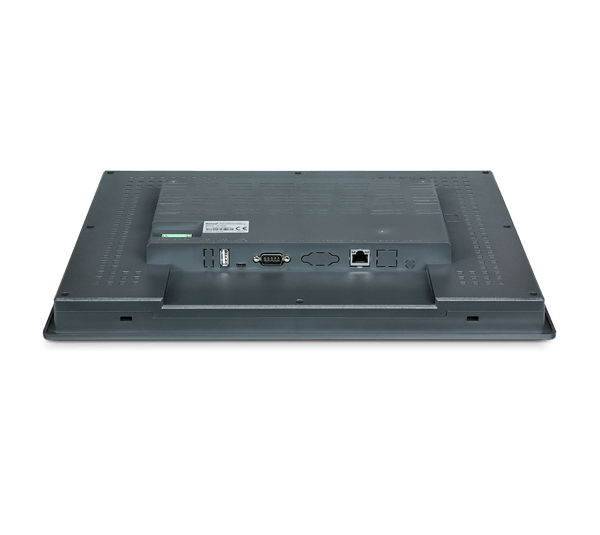

• Ethernet: 1 × RJ45, 10/100 Mbps
• Serial ports: 2 × COM
• USB: 1 × USB Host, 1 × Micro USB
• Power supply: DC 10.8–28 V
• Power consumption: up to 10 W
• Front panel protection: IP65
• Operating temperature: -10 to +55 °C
• Humidity: 10–90% RH, non-condensing
• Cutout size: 383 × 283 mm
• Overall dimensions: 398 × 298 × 47 mm
• Weight: approx. 3 kg
• Configuration software: Kinco DTools V4.1 or above
• Certification: CE

Flyer_GL150E_EN 202306
