KINCO GL100E HMI

Kinco GL100E is a 10.1-inch industrial HMI designed for visualization and control of industrial processes. It belongs to the Kinco GREEN Series and is suitable for automation systems, control cabinets, dosing units, bagging equipment, conveyor lines, mixers, and other industrial machinery. The manufacturer positions GL100E as a preferred 10-inch model for general applications. (en.kinco.cn)

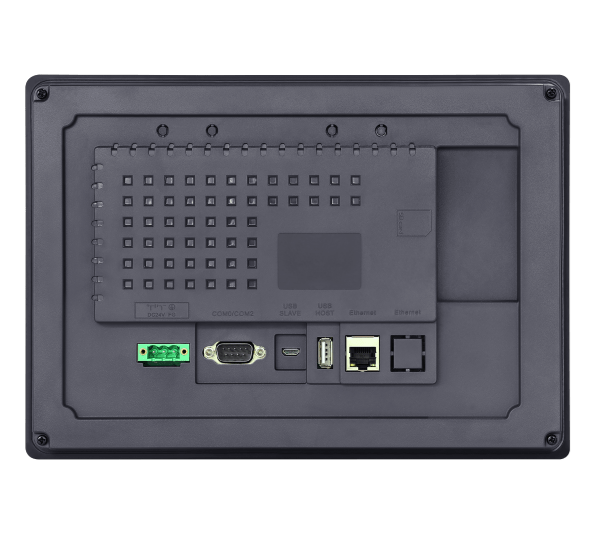

The panel features a 10.1″ TFT display with 1024×600 resolution, 16.77 million colors, Ethernet, two COM ports, and USB Host. This makes the GL100E a practical operator interface for PLCs, weighing controllers, inverters, and other automation devices. The front panel complies with IP65 protection requirements for industrial environments.

Short description:
Kinco GL100E is a modern operator panel for building clear and user-friendly control interfaces. It is suitable for mimic diagrams, live process values, alarms, event logs, service screens, and control buttons. The device is configured with Kinco DTools V4.1 and above. (en.kinco.cn)

Technical specifications of GL100E:

• Device type: industrial HMI
• Series: Kinco GREEN Series
• Display: 10.1″ TFT
• Display area: 227.72 × 125.28 mm
• Resolution: 1024 × 600 px
• Colors: 16.77 million
• Viewing angle: 70/70/60/70 (L/R/U/D)
• Contrast ratio: 500:1
• Brightness: 400 cd/m²
• Backlight: LED
• LCD life: >30,000 hours
• Touch panel: 4-wire precision resistive type, surface hardness 4H
• CPU: ARM RISC 32-bit, 800 MHz
• Memory: 256 MB Flash + 128 MB Memory
• RTC: built-in
• External storage: 1 × USB Host
• Ethernet: 10/100M adaptable Ethernet interface
• Program download: Micro USB / U Disk / Ethernet
• Communication: COM0 — RS232/RS485/RS422; COM2 — RS232
• Power supply: DC 10–28 V, built-in isolated power supply
• Power consumption: 6 W @ DC24V
• Allowable power loss: <3 ms
• Insulation resistance: >50 MΩ @ 500V DC
• Hi-pot test: 500V AC, 1 minute
• Housing material: engineering plastics
• Overall dimensions: 271 × 191 × 36 mm
• Cutout size: 260 × 180 mm
• Weight: 0.9 kg
• Operating temperature: 0 to +50 °C
• Storage temperature: -20 to +60 °C
• Humidity: 10–90% RH, non-condensing
• Cooling method: natural air cooling
• Front panel protection: IP65
• Certification: CE
• Configuration software: Kinco DTools V4.1 and above
• Note: GL100E is a replacement model for MT4532TE.
